Infinite Automation 10 Amp Smart Switch

$165.00

Name Infinite Smart Switch
Model Number IA3 0A1 V1
Power input 100 to 240V~ , 50/60Hz
Power output 240V~ 50Hz, Max: 20A
Wi-fi Frequency 2.4 GHz
Size 89 x 70 x 26 mm

Download Infinite Automation Home and SDA Smart Home Automation Brochure

SKU: IA10ASSX1 Category: Brand:

Description

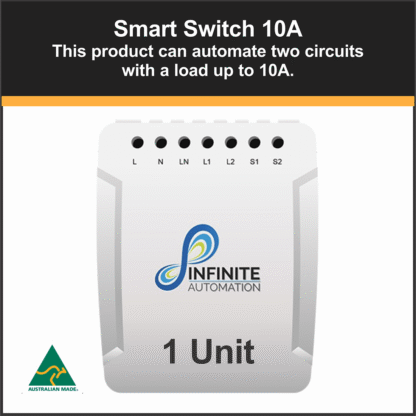

This product can automate two circuits with a load up to 10A. This switch is ideal for automation such as switches, power circuits, appliances, Motorised curtains, Pool pumps and more…

Easy to install and set up

Our switch takes 15 minutes for retrofit install in a standard environment and is easy to configure. It works with your home wifi router and eliminates the need for any hardware dependency.

Installation

  1. Loosen the terminal screws and ensure adequate space to insert the stripped cable.
  2. Connect wires correctly as shown in the diagram and double-check all the connections carefully.
  3. Ensure bare wires are fully inserted into the terminal and there are no loose strands of wire.
  4. Terminals must be tightened adequately as per Australian Standards to ensure the wire doesn’t come out after installation.
  5. Ensure all the conductors are secured tightly by terminal screws.
  6. Ensure neutrals are connected. N & LN must not loop anywhere and should be connected as shown in the diagram otherwise power consumption data will not display correctly.

Notes

  • All installation work must be performed by a qualified electrician.
  • The Infinite Smart switch installs behind a switch or power point.
  • If the Infinite Smart switch requires roof installation, or a non-insulated environment, a junction box must be installed.
  • The infinite smart switch must be installed as per standard guidelines and requirements
  • Specifications may be modified without notice due to continuous improvement.



Infinite Automation 10A Wiring Diagram



L (line) Brown or Red cable of mains
N (Neutral) Black or Blue cable of mains
LN Neutral from L2
L1 (Load-1) Not in Use
L2 (Load-2) To electrical load
S1 (Switch-1) Not in Use
S2 (Switch-2) Wall Switch 2

Technical Information

  • Max standby power:
    <0.7W
  • Power measurement accuracy:
    + or – 3W
  • Dimensions:
    89 x 70 x 26 mm
  • Accepted Input for L:
    100 – 240V~, 50/60Hz
  • Device is compatible to max current as per below:
    Output: 240V~, 50/60Hz
    Max Load : 20A
  • External Switch Voltage Requirements:
    L and N input 100–240V~, external switch should be powered by 100–240 V~ to S2 connection.
  • Environment of Installation:
    Must be installed indoors or in a weatherproof box.
  • Compatible wiring size for our connectors:
    12AWG – 26AWG.
  • Factory Reset:
    7 consecutive on and off from wall switch will reset the hardware.
